Some causes of lag and bad r_speeds:

• Seeing too much. #1 problem! Brushes, both visible and invisible make wpolys. If you SEE too many, then you will have lag. Obviously the longer or wider the view, the more wpolys/brushes you will be able to see, and the worse r_speeds and lag will be - unless the mapper took great care, or you have a super machine. Limits of how many wpolys cause lag has changed, originally it was 600, then upped to 800 max, now some are speaking of 1000 being bearable for their CPUs. However, some players are still stuck with old systems, so try to aviod the limits where you can. Most of the solutions below will discuss ways of limiting wpolys/brushes seen.

• Animated sprites. This is not so bad anymore, but I remember when a CS smoke grenade would lag some players terribly. Sprite effects are not shown in r_speed counts, only by fps. The best way to test for a problem is going into software mode and checking out your map to see if the animated sprite you used cause a big hit in fps. Again, if it is seen from a large area it will affect more players than in a small isolated area. Non-animated, still sprites are a far less problem, but still should be checked also.
  Besides Sprites, some other entitys can also cause bad lag, esp. net lag: env_beam, pendulums, moving trains - entitys that are constanly changing in some way, forcing the engine to rerender all the time or to check for blockage.

• Battle Lag. Like animated sprites, the artifacts of combat can cause lag, especially in high wpoly areas. Some of this can be reduced by a player lowering the number of bullet dust sprites, limiting the number of shell casings seen, using lower Res video. But mappers have to consider battle lag, try to predict battle area, and reduce wpolys counts in those areas so that the combination will not go over the limits.

• Transparencies and func_water. Water, func_water especially, can be seen everywhere on a map, though all walls & VIS blockers. Therefore too much water can lead to lag, especially in multiplayer maps. Other transparencies are not so bad, since they don't show thru walls & VIS blockers, but on some older video cards they can cause an extra rendering pass to happen, which in effect multiplies the number of wpolys in an area. So glass, func_illusionary plants, and other see-thru brushes should be avoided in high wpoly areas.

  from an interview with Paul Jaquays, designer id Software. 2001 "How much does the multipass stuff like fog, etc. affect the poly count? "Significantly. Generally speaking, all textures drawn in the world require a minimum of two redraw passes. Every time you add a stage of manipulation to a texture, you must redraw the world (or at least that part of it), essentially adding the number the polies containing that texture to the total poly count. If you can see a polygon through another polygon, as is the case with many of the alpha channel functions (transparencies, translucencies, cutouts, decals) and special cases like water and fog, you add the count for the texture that you are seeing through to the textures you can see. Think of it as stacking up layers. Each pass on a texture is a layer. Each pass on a texture you are looking through is a layer added to the stack. Each layer requires a redraw pass of the world."

• Leaf saw and bad compiles. If you try to run a map with an error like a leak, a VIS -fast in compile, no VIS/RAD, or any other bad or incomplete compile you will get bad r_speeds. The system has not enough information and the wpoly counts and what-you-can-see calculations will in wrong and incomplete. You can expect a lot of lag. So fix errors and make a good compile!

• SKY rendering. Recently it has become popular to advocate replacing {invisible textures with SKY, because SKY textures produce no wpolys. However a mapper has to take into account that the SKY must be also rendered, so fps may take a hit even without any wpolys. This does not mean SKY cannot be used, it generally causes less lag than wpolys, but overuse (especially in areas where there is no SKY usually, like indoors) will still cause lag in play on some machines.

Some solutions to lag and bad r_speeds

1. PLAN, pre-plan your line-of-sight everywhere, so there are few brushes with easily stretched texures for long views, and short views get more of the detail brushes. Generally plan to avoid long views, like long streets and long corridors - break it up into an S or L shape if you can. Try not to have wide open areas, like a plaza or open field, with a lot of small details. Try to avoid good lookout points overlooking large areas of detail from above. Often a great view = lousy lag. Keep windows and doors to a minimum facing large open areas, or facing long views. Put walls inside behind windows and doors, so players cannot see through or far into the house.

2. BSP initially divides your map into 1024x1024x8192 sections. This procedure can produce unwanted brush cuts unless you arrange your map to minimize these effects. Any brush which intersects a line at x or y equal to a multiple of 1024 will be divided in this way. (Since the sections used are 8192 units tall, and the maximum extents of a map are +/-4096 units in any direction, you don't have to worry about these cuts on the z axis.) Of course if your room is larger than 1024 units in either the x or y direction, at least one of these cuts will still be made. However, you can minimize the effects of these cuts by careful arrangement of your brushes. For example, if you have a crate with one face at x=1022, move it over 2 units so that this face is at x=1024. This method can very easily decrease your polygon count by 50 or more in a room with many details.
   You can also during compile change the BSP division with BSP -maxnodesize 4096. This will make larger nodes than 1024 possible, avioding the cut at 1024; but will have the bad side effect VIS leafs also larger, so that the r_speeds may go bad because the engine thinks you can "see more". You may make less wpolys, but end up seeing more of them - so you end up with worse lag/r_speeds. So test any use of this feature carefully!

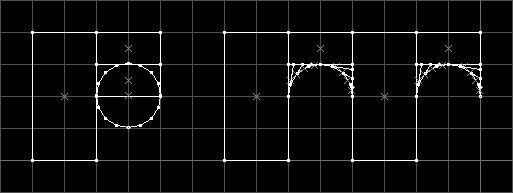

3. Do not carve, hollow, or vertex adjust if you can help it. These tend to make problem brushes which cause compile failures and add to the number of wpolys, adding to r_speed problems. Carving especially tends to "shatter" brushes involved, which creates more wpolys. If you must carve, then use the smallest brush possible (to minimize the area involved) and seperate it from a larger brush, as in this example.


4. Reducing shattering by brushes that touch other brushes:
   1. Func_wall - a func wall does not cause shattering of brushes it touches. So if a small brush (or cylinder, stairs, or other odd shape) intersects or touches a larger brush, turn the smaller/odd one into a func wall. But remember, a func wall is see thru for VIS, so it blocks no line-of-sight into other VIS leafs. Therefore try to keep large brushes regular world brushes, so that they can block VIS.
      Also, since func_wall is see thru for VIS, sides that would normally be invisible - on the floor, for example - will now be visible and could add in a minor way to wpoly counts. Everything has its downside, it seems.
   2. Gapping - if you are running low on entitys, you can try gapping. You leave a 1 or 2 unit space between the problem brush and any brush it might touch. It will not help VIS blocking, because VIS will see thru the gap, but it will reduce shattering caused by odd shapes touching other brushes.

5. Wedges. If you have four-sided brushes in a spot where the player cannot get to the far side, use a 3-sided wedge brush instead. Depending on the architecture of your map, this simple change can result in a significant decrease in your polygon count. For example, two barred windows are placed in the two test rooms. In the first room, the bars are regular square brushes; in the second room, triangular wedge brushes are used with the point of the triangle facing away from the player. Even up close it is hard to tell that these brushes aren't 4-sided, but the peak polygon count drops by more than 50 with this simple change. This method will likely produce similar results with jail cells and any type of grate, and is also good for stair steps, chair and table legs, ect. (Make sure you func_wall all the wedges, so that shattering does not occur to the brushes they touch! You can often combine all the smaller triangles into one func_wall.)
   SPECIAL NOTE - 3 sided object do NOT break well - do not use for breakables!

6. The donut hall is good for blocking VIS. Notice how the line-of-sight straight through from top to bottom is blocked.


7. The underground connection is also good for blocking VIS. One can use either a tunnel to connect two areas, and VIS will be blocked by the ground. Overhead connections like walkways do not work as well, because the player's side veiw is often not blocked so he sees a lot of surrounding areas, with high r_speeds. Of course, the room to room view would still be blocked, but the connector would be come the new problem.

8. Use still sprites and models to substitute for brushes, especially complex or detailed ones. They will cause some lag, but if used carefully in a limited way, they will save more on wpolys lag. For example, for a tree do not try to make one out of brushes, but use a still sprite or a model instead. The same for a complex spoked wheel cart, a detailed tank or a cow.

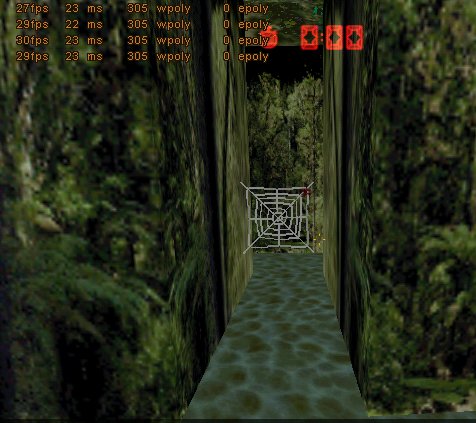

9. SKY. This may be the most obvious one of all. Environment (or sky) textures do not contribute towards the polygon count. You can replace brushes that do little to contribute to the look of a room with sky brushes to lower your polygon count. However, SKY brushes do need to be rendered, which can secretly lag fps, even while wpolys are not counted. So it is best to use SKY brushes instead of invisible { textured brushes poutside where SKY will be rendered anyway, and use the invisible { textured brushes indoors where SKY might add lag.

10. Stretch textures on brushes when you can. 2x, 3x, or 4x (up to 9x, more makes problems) in both x and y axis helps. Wpolys are larger, but fewer - and so run faster and r_speeds are lower. It takes an equal amount of work for the engine to render a small brush with small wpolys as a large wpoly on a textures stretched brush.
    If you stretch a 256x256 texture 9x then the 224 (for tiling) subdivide will also be stretched 9x = a wpoly of 2016x2016. That is about the maximum wpoly you can have - regardless of what texture size you use. 9x 224x224 = 2016x2016, 9x128x128 = 2016x2016, 9x16x16 = 2016x2016 subdivide. The only difference is how many times the smaller textures will tile within that 2016. For more info on this, see my texture dimensions tutorial.

    NOTE: There have been discussions about the 240(not tiling)/224(for tiling) subdivide on faces to create wpolys, and how using a 224x224 or 240x240 texture can keep wpolys low with minimal stretching. This is true, but texture quality still suffers - the engine resamples the 224 or 240 at 128x128, aliases and resizes to use. This results in a loss of texture quality, and maybe crosshatching. So resizing the texture to 224x224 or 240x240 does not make much of a difference in Wpolys, and causes severe losses of texture quality. You would be better off to use a 128x128 texture and stretch it if you are going cover a 256x256 brush with a stretched texture to aviod the 240 (not tiling) subdivide. That way you have the same low wpoly from stretching the texture without giving the engine extra work to resample. Furthermore, a 16x16 texture will not make wpolys 16x16 if it is not stretched. Instead it will make the wpoly at the brush size or 224 (for tiling), whichever is smaller. It is texture stretching which stretches (or shrinks) the subdivide - not the texture size!

    sample of stretching using the texture tool. note that the texture is a 128x128, and is stretched 1.5x.

11. Make details part of textures. This is primarily intended for all of you engineers and architects and wannabe's out there - you know who we're talking about. It may be very tempting to try to mimic a real environment with brushes as much as possible, down to the smallest details. However, this practice will very often produce a completely beautiful, but unplayable map. If architectural details aren't critical to gameplay, consider simplifying your level by simulating details with textures.

12. NULL texture. This is a new texture that work's with Merle's extensions to Zoner's compile tools. NULL textured faces are simply deleted from the map at compile = less wpolys. However NULL is tricky to work with since it can lead to hall-of-mirrors type errors or other problems.

13. Fixing water - there are several ways to hide the water for the "water everywhere seen" problem in multiplayer maps and still have transparent water:
    1. chopping - it is claimed to help to chop your water into sections of 512x512 (or smaller) and tie each section to a different func_water. However I myself could not get this to work! My water was still visible everywhere!
    2. texture I - Make, and use an animated water texture without the '!' at the beginning of the name, along with func_water entity. Only textures with a ! on the beginning of the name will be used as water textures by the engine. Possible problem: the water_surface may only be seen by one side.
    3. texture II - Use a func_illusionary instead of func_water, then un-select smart edit. In the key of skin, add the value "-3". Now it should sound like water, and if you jump it will not hurt, just like water. Possible problem: the water_surface may only be seen by one side top.

Mitering or Mitre - recent research has shown it is not needed, if the textures on all faces is aligned to world, and match. With all textures matching, compile turns the touching brushes into one face anyway. So i do not incude that.

HINT/SKIP brushes - complex subject i did not include. There is a good tutorial on HINT/SKIP at counter-map anyway. See the links

Tools to use to find problem areas in a map:

• -Developer 1 or -dev - this allows things to be seen on the map as you move around, after you close the console back down. (2 is for entity checking, which is not related to lag.)
• -R_speeds 1 - this allows you to see the wpoly count, possibly the fps and epolys as well.


  In software mode it is shown something like : 33 ms 250/220/30 poly 0 surf 33 ms for one game cycle - framerates are 1000/ 33ms = 30 fps for this example 250 - number of wpolys in view << the important one - "the r_speeds" 220 - number of polys drawn 30 - number of polys not drawn and in gl mode is is shown something like: 250 wpoly 450 epoly 3 tex 2 lmaps or like 27fps 25ms 297wpoly 1684 epoly

  CHEAT TOOLS
• -noclip - this allows the tester to move through walls.
• -god - you can't be hurt.
• -software or -soft - this will allow the tester to go into software mode to check drawflat without having to get out of the engine and go to video controls.
• -R_drawflat 1 or 2 - if the tester is in software mode, then this will show the faces seen from the testers position. It completely removes the textures from brushes, and colors the brushes with different colors to separate the polygons from each other.
• -R_draworder 1 or 2 - if the tester is in software mode, then this will show the drawflat in another mode. It reverses the order of drawing brushes, basically meaning that you'll see the farthest point the engine can see, usually behind a corner or two or you will see faces from close up first - hiding the further stuff.
• -gl_wireframe 1 or 2 - if the tester is in gl mode, then this will show the wpolys seen as triangles from the testers position. gl_wireframe 1 draws lines to show the edges for polygons you can see on-screen, when gl_wireframe 2 shows the lines for every polygon the engine sees. The second option (gl_wireframe 2) is handy when using hint brushes.

For gl commands you will want to start in single player test mode which is done with a batch file or WC command like this test.bat :

c:\SIERRA\Half-Life\HL.exe +map %1 -console -game cstrike - where map %1 takes the map name. USAGE: in MSDOS mode type test yourmapname.bsp to run.
